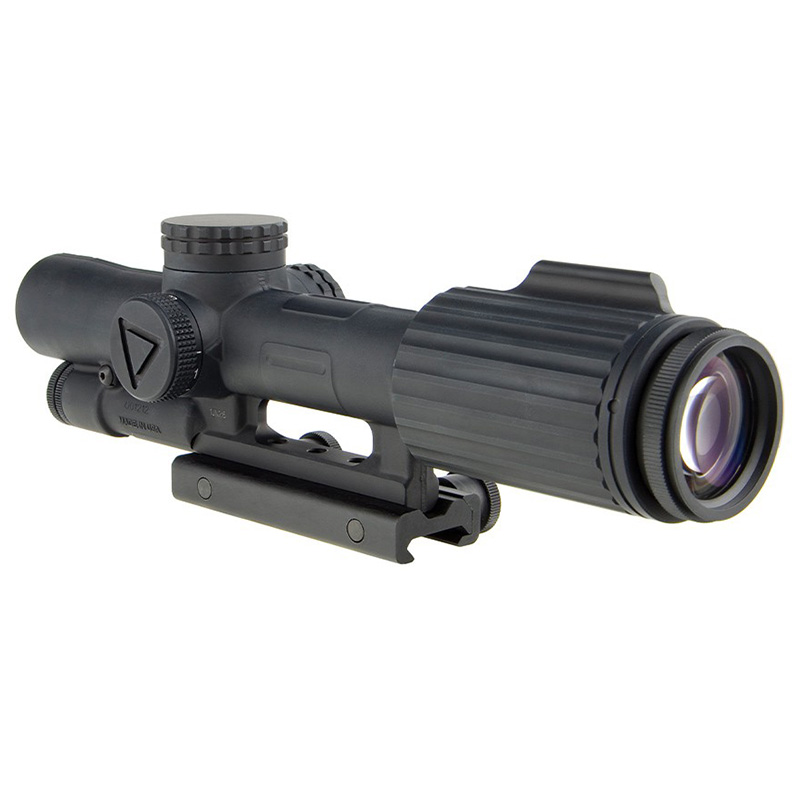

Trijicon VCOG 1-6x24 LED Riflescope - .223 / 55 Grain Green Segmented Circle/Crosshair
- Brand: Trijicon
- Product Code: VC16-C-1600040
- Availability: In Stock
- USD 1,500.00
Trijicon VCOG® 1-6x24 LED Riflescope - .223 / 55 Grain Green Segmented Circle/Crosshair, Thumb Screw Mount
INCLUDES:
Thumbscrew Flattop Adapter (TA51)
Lithium AA Battery
LENSPEN® (TA56)
Trijicon Logo Sticker (PR15)
Manual
1 Warranty Card
OVERVIEW
The Trijicon 1-6x24 VCOG® (Variable Combat Optical Gunsight) is a rugged variable powered riflescope that accommodates close quarter battle (CQB) and long distance marksmanship. It features superior glass quality and light gathering capabilities with zero distortion. The bullet drop compensating and ranging reticles allow for the shooter to quickly and accurately estimate range and apply the correct hold. The first focal plane reticle allows the subtensions and drops to remain true at any magnification. With a forged 7075-T6 aircraft-aluminum-alloy housing, the VCOG is an exceptionally durable and nearly indestructible sighting system. Robust enough for any application, the VCOG utilizes a single AA battery, commonly found across the globe and offers 6 adjustable brightness settings for the LED reticle. When powered by a lithium AA battery (like the one provided), it boasts a considerable battery life of 1400 hours at setting 4 (constant on). An integrated dial fin allows easy rotation through the magnification range and a constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.).
SPECIFICATION:
Length x Width x Height
10.05 in x 2.51 in x 2.73 in
(255.27mm x 63.75mm x 69.34mm)
Weight
23.2 oz. (657.71g)
Magnification
1-6x
Objective Size
24mm

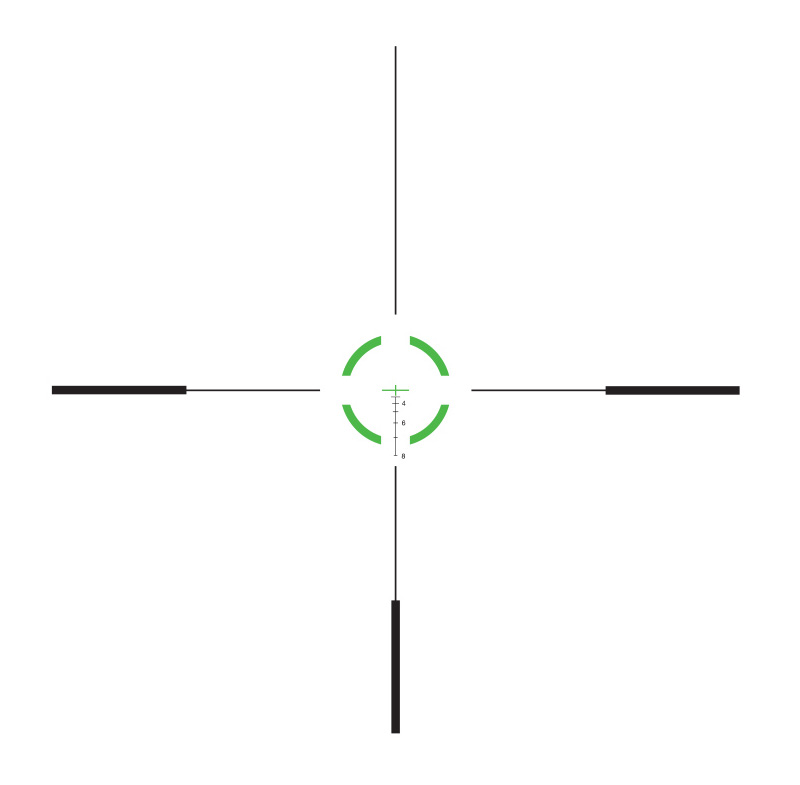

Reticle Pattern
Segmented Circle / Crosshair
Day Reticle Color
Green
Night Reticle Color
Green
Focal Plane
First
Bullet Drop Compensating (BDC)
Yes
Caliber
.223 / 55 grain
Bindon Aiming Concept™ (BAC)
Yes
Illumination Source
LED
Power Source
AA Lithium or Alkaline Battery
Battery Life
1400 hours continuous use at brightness setting 4 of 6
Adjustment
1/2 MOA Per Click
Adjustment Range
Elevation: 90 MOA total travel; Windage: 90 MOA total travel; Per Revolution: 35 MOA
Eye Relief
4 in. (101.6mm)
Exit Pupil
0.41 in. - 0.15 in. (10.41mm - 3.81mm)
Field of View (degrees)
18° - 3°
Field of View (feet)
95 ft. - 15.9 ft. @ 100 yds. (31.67 - 5.3m @ 100m)
Mount
Flattop Thumbscrew Mount (TA51)
Housing Material
Forged Aluminum
Finish
Matte Black
Submersion Depth
66 ft. (20m)
INCLUDES:
Thumbscrew Flattop Adapter (TA51)
Lithium AA Battery
LENSPEN® (TA56)
Trijicon Logo Sticker (PR15)
Manual
1 Warranty Card
OVERVIEW
The Trijicon 1-6x24 VCOG® (Variable Combat Optical Gunsight) is a rugged variable powered riflescope that accommodates close quarter battle (CQB) and long distance marksmanship. It features superior glass quality and light gathering capabilities with zero distortion. The bullet drop compensating and ranging reticles allow for the shooter to quickly and accurately estimate range and apply the correct hold. The first focal plane reticle allows the subtensions and drops to remain true at any magnification. With a forged 7075-T6 aircraft-aluminum-alloy housing, the VCOG is an exceptionally durable and nearly indestructible sighting system. Robust enough for any application, the VCOG utilizes a single AA battery, commonly found across the globe and offers 6 adjustable brightness settings for the LED reticle. When powered by a lithium AA battery (like the one provided), it boasts a considerable battery life of 1400 hours at setting 4 (constant on). An integrated dial fin allows easy rotation through the magnification range and a constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.).
SPECIFICATION:
Length x Width x Height
10.05 in x 2.51 in x 2.73 in
(255.27mm x 63.75mm x 69.34mm)
Weight
23.2 oz. (657.71g)
Magnification
1-6x
Objective Size
24mm
Reticle Pattern
Segmented Circle / Crosshair
Day Reticle Color
Green
Night Reticle Color
Green
Focal Plane
First
Bullet Drop Compensating (BDC)
Yes
Caliber
.223 / 55 grain
Bindon Aiming Concept™ (BAC)
Yes
Illumination Source
LED
Power Source
AA Lithium or Alkaline Battery
Battery Life
1400 hours continuous use at brightness setting 4 of 6
Adjustment
1/2 MOA Per Click
Adjustment Range
Elevation: 90 MOA total travel; Windage: 90 MOA total travel; Per Revolution: 35 MOA
Eye Relief
4 in. (101.6mm)
Exit Pupil
0.41 in. - 0.15 in. (10.41mm - 3.81mm)
Field of View (degrees)
18° - 3°
Field of View (feet)
95 ft. - 15.9 ft. @ 100 yds. (31.67 - 5.3m @ 100m)
Mount
Flattop Thumbscrew Mount (TA51)
Housing Material
Forged Aluminum
Finish
Matte Black
Submersion Depth
66 ft. (20m)
