US Optics B-17 3.2-17x50 .1MRAD Horus H59 Scope
- Brand: US Optics
- Product Code: B-17-H59-USO
- Availability: In Stock
- USD 1,745.00
US Optics B-17 3.2-17x50 .1MRAD Horus H59 Scope

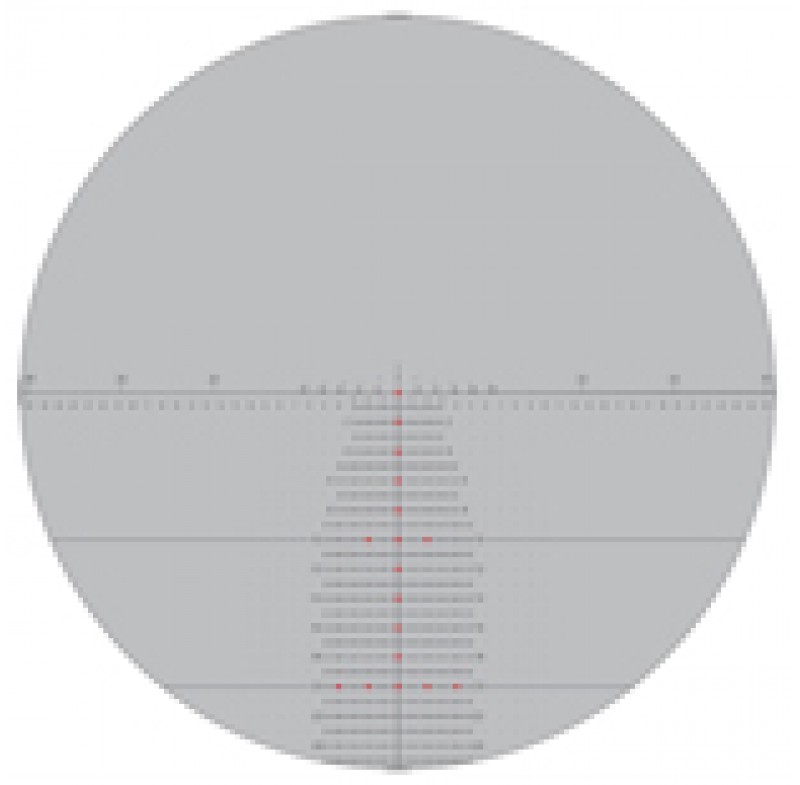

This B-17 features the Horus Vision H59 Reticle. The Horus Vision R59 Reticle is based off the Horus Vision R58 reticle but has an increased horizontal grid. The horizontal grid has been increased by 1 MRAD and the center cross has been changed into a “broken cross”. The “broken cross” allows for groups to be more easily seen.
Modern rifle scopes must meet the demands placed upon them in an operational sense, as well as satisfy consumers. It's not always easy to do both, but U.S. Optics has come up with a winner in their new "B" Series, which includes the B-10, B-17, and B-25 scopes.
Features:
Locking elevation and windage knobs
Zero-stop
Revolution counter
Tool-less elevation zero
Single-button illumination control (integrated into the parallax adjustment knob)
2 mm Exit Pupil Diameter
+2 to -3 Diopter
2.3” / 58.63 mm Objective Lens Housing Diameter
1.40” / 35 mm Ocular Lens Diameter
Lithium Coin battery (CR2032); runtime up to 8,000 Hours
| Item Condition: | New |
| Scope Weight: | 31.3 oz / 0.887 kg |
| Scope Length: | 15.02" / 381.50 mm |
| Magnification Range: | 3.2-17x |
| Scope Objective Diameter: | 1.96" / 50mm |
| Scope Tube Size / Mount: | 1.33" / 34mm |
| Scope Turret Adjustment: | .1 MRAD Total Elevation: 35 MRAD Total Windage: 5 MRAD L / 5 MRAD R (once limiter is set) |
| Parallax Adjustment: | Side Focus Parallax 50 -> ∞ |
| Reticle Position: | First Focal Plane |
| Field of View: | Field of View @ 3.2x: 25.25’ @ 100 yards Field of View @ 17x: 8.03’ @ 100 yards |
| Eye Relief: | 3.5" / 8.9 cm |
| Illuminated Reticle: | Single-button illumination control (integrated into the parallax adjustment knob) Color: Red |
| Scope Finish: | Aluminum, 6061-T6, Type III Hard Anodized, matte black |
| UPC | 811069021055 |
| UPC | 811069021055 |
| MPN | B-17 H59 |
