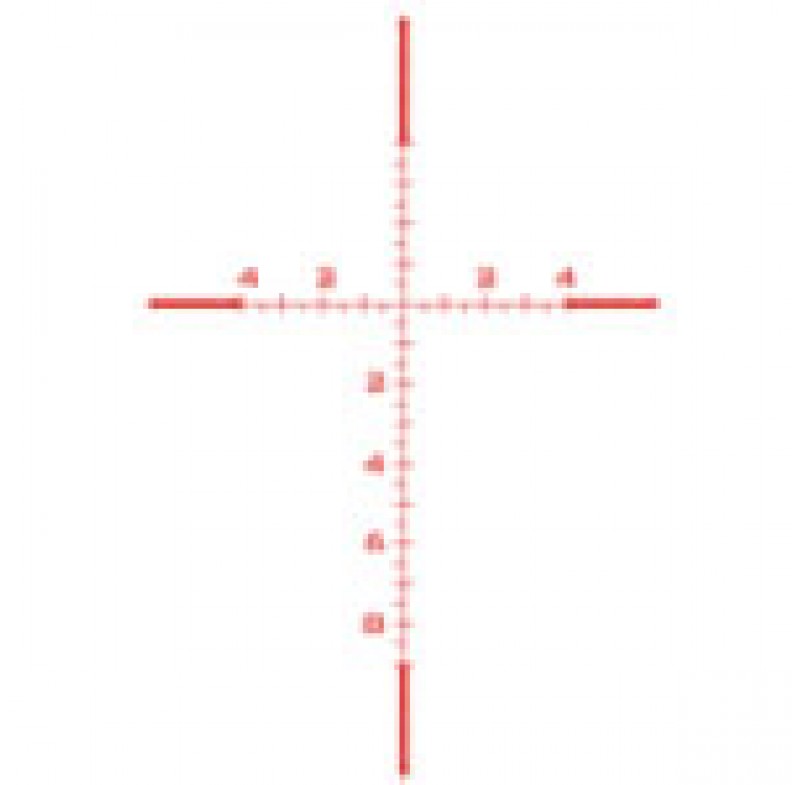

US Optics B-10 1.8-10x40 mm Scope 34MM Tube Digital Red FFP GAP Reticle 100 Click Elevation Knob B-10 GAP
- Brand: US Optics
- Product Code: B-10-GAP-USO
- Availability: In Stock
- USD 1,115.00
US Optics B-10 1.8-10x40 mm Scope 34MM Tube Digital Red FFP GAP Reticle 100 Click Elevation Knob B-10 GAP
Modern rifle scopes must meet the demands placed upon them in an operational sense, as well as satisfy consumers. It's not always easy to do both, but U.S. Optics has come up with a winner in their new "B" Series, which includes the B-10, B-17, and B-25 scopes.
The B-10 is a medium-range scope, meant to engage targets out to a range of ~1,000 - 1,200 yards. The B-17 is a medium-long range scope, meant to engage targets out to a range of ~1,500 - 1,700 yards. Finally, the B-25 is a long-range scope, meant to engage targets out to a range of ~2,500-yards (and potentially further) in the hands of a capable marksman.
Features:
Locking elevation and windage knobs
Zero-stop
Revolution counter
Tool-less elevation zero
2 mm Exit Pupil Diameter
+2 to -3 Diopter
2” / 50.80 mm Objective Lens Housing Diameter
1.40” / 35 mm Ocular Lens Diameter
Lithium Coin battery (CR2032); runtime up to 8,000 Hours
Item Condition: | New |
Scope Weight: | 29.3 oz / 0.822 kg |
Scope Length: | 12.98” / 329.6 mm Overall Length |
Magnification Range: | 1.8x - 10x magnification |
Scope Objective Diameter: | 40 mm |
Scope Tube Size / Mount: | 34 mm |
Scope Turret Adjustment: | .1 Mrad Total Elevation: 48 Mrad Total Windage: 5 Mrad L/5 Mrad R (once limiter is set) |
Parallax Adjustment: | Side Focus Parallax 30 yds->∞ |
Reticle Position: | First Focal Plane |
Field of View: | Field of View @ 1.8x: 36’ @ 100 yards Field of View @ 10x: 11.3’ @ 100 yards |
Eye Relief: | 3.25” / 8.9 cm Eye Relief |
Illuminated Reticle: | Single-button illumination control (integrated into the parallax adjustment knob) Color: Red |
Scope Finish: | Aluminum, 6061-T6, anodized black |
UPC | 811069020720 |
UPC | 811069020720 |
MPN | B-10 GAP |
Tags: RIFLE SCOPES, US Optics
